Haptics Engine & SDK

The Haptics Engine is a real-time engine that translates haptic effects into signals for supported devices. It removes the complexity of device-specific languages to deliver the best possible performance on each platform.

GET HAPTICS SDK FOR YOUR GAME ENGINES

Get it now Learn More

All great, but how does the Haptics Engine work? Let's get technical.

The Haptics engine is a real-time haptics rendering process that can support a variety of use case (spatial haptics, event based, 3D interactions, etc.)

Audio to Haptics

Fullbody mapping

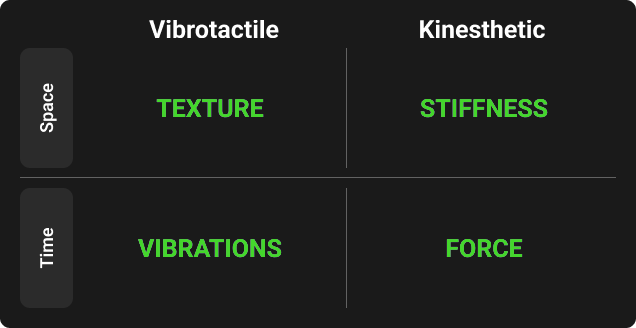

Spatial haptics and four perceptions

WYVRN haptic technologies takes inspiration from the human perception of the sense of touch. There are 20-25 discernible sensations that humans can perceive with the sense of touch, and existing haptic devices can render convincingly just 3 of them: Vibrations, Textures, and Stiffness. Each of these perceptions has one solid perceptual characteristic on its basis. We extracted and modeled them.

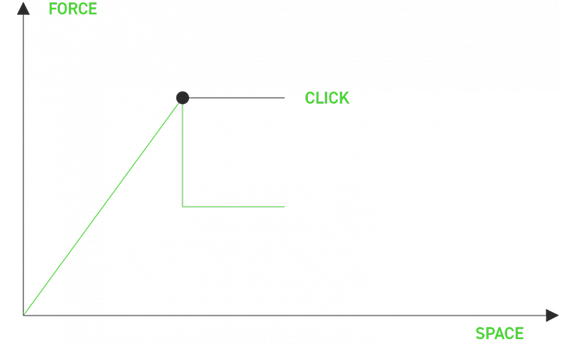

Both Textures and Stiffnesses are perceptually encoded in space (the faster you move, the faster the sensation happens), while the vibrations and force feedback are encoded in time. Let's take the example of a button. The sensation grasped by the button is perceived as a function of the applied pressure, then a click happens, and the force suddenly drops down.

This behavior is intrinsic to how humans perceive touch sensations. All the algorithms and concepts included within the Haptics Engine are computed in real-time to give the best possible haptic experience to the users.

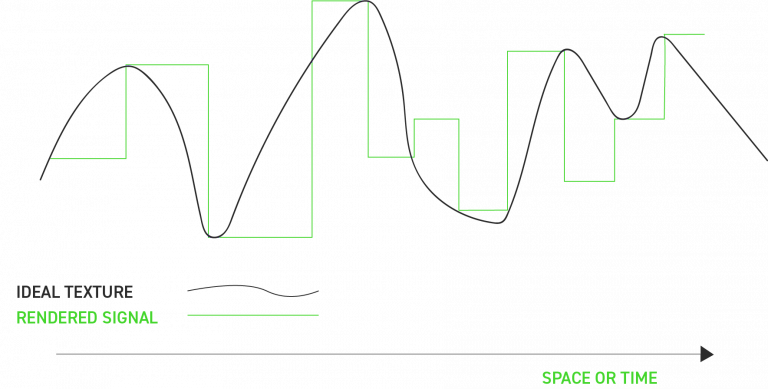

Haptics hyper sampling

There is a well-known problem in the haptics field referring to signal processing theory: the data acquisition rate of the system determines the accuracy of your processed signal. Position acquisition is fundamental to render textures and stiffnesses, and XR and mobile systems have position acquisition rates up to 120 Hz. Where is the catch? Haptics, to work perfectly, requires rendering frequencies in the 1 kHz region. Here we encounter the well-known problem of under-sampling: you can have the best haptics actuator on the planet, but if you cannot control it fast enough, it is pretty useless.

(see here and here for a broader academic discussion of the problem and case-specific solutions)

This approach allows WYVRN Haptic technologies to create a perceptually accurate haptics rendering, far above the ability of the tracking system to acquire the position. The method works because we considered touch perception and the limit of human motor behavior within the rendering algorithm.

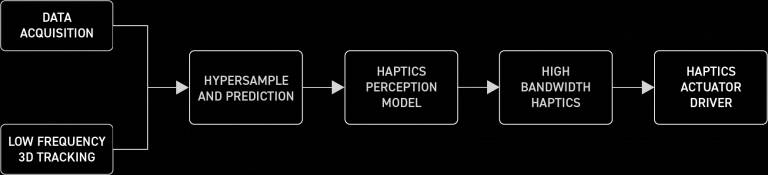

WYVRN Haptics SDK solves this problem in a general manner. We included a model of human motor behavior and haptics perception within the Haptic Engine. Haptics SDK uses this model to hyper-sample the human position and give a stable haptics perception for spatial and time-based haptics.

This approach allows WYVRN Haptics dev tools to create a perceptually accurate haptics rendering, far above the ability of the tracking system to acquire the position. The method works because we considered touch perception and the limit of human motor behavior within the rendering algorithm.

Haptic SDK - Software Development Kit

Building haptics into an application has always been a problem. The asset and scripts developed can hardly be transported in a new project for a different platform. The Haptics SDK addresses this problem. It allows building for haptics, and the Haptics Engine manages the device complexity allowing a scalable way to create haptics assets and include them in your content.

How do you include haptics in your applications?

There are two separate ways to include haptics in applications. The first approach is a physics-based simulation of contact and forces (touch and object, feel haptic feedback). The second approach is based on the feedback generated following events: click a button, and feel predetermined feedback for confirmation.

The Haptics Engine was made for the purpose of supporting all use cases where haptics needs to be integrated. Whether you need haptic effects to be event-based, collision-based, interaction-based, or completely customized, the engine can digest all the necessary data to render the exact effect needed in a precise context. The flexibility of the Haptics Engine allows great scalability in terms of SDK creation and deployment. You can use the Haptics Engine to output a signal adapted to the detected device. Do you need a verticalized solution for a specific experience? You will be able to build exactly what you need on top of the base engine and SDK to reach your objectives.
